MER2-630-60U3C

1/1.8", 60FPS, 3088×2064, COLOR, ROLLING SHUTTER, IMX178, USB3.0

The MER2-630-60U3C camera is a color USB3.0 Vision camera with the Sony IMX178 CMOS sensor. Thanks to the extremely compact (29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY2 cameras can secure the reliability of cameras deployed in harsh environments.

The MER2-630-60U3C camera is powered over the USB3.0 interface.

Trigger mode: Frame Start /Frame Burst Start
Decimation, Binning, Digital Shift and Black Level
Adjustable Gamma for optimizing the brightness of images
Color models support Light Source Preset, Color Transformation Control and Saturation
Color models support Sharpness with Noise Suppression, adjust the sharpness noise suppression threshold can reduce the noise of homogeneous area
Support Global Reset Release shutter mode
Programmable LUTs and User Set Control
Support Timer and Counter
Support Remove Parameter Limit to expand the range of exposure, gain and so on
16KB data storage area for saving algorithm coefficients and parameter configuration

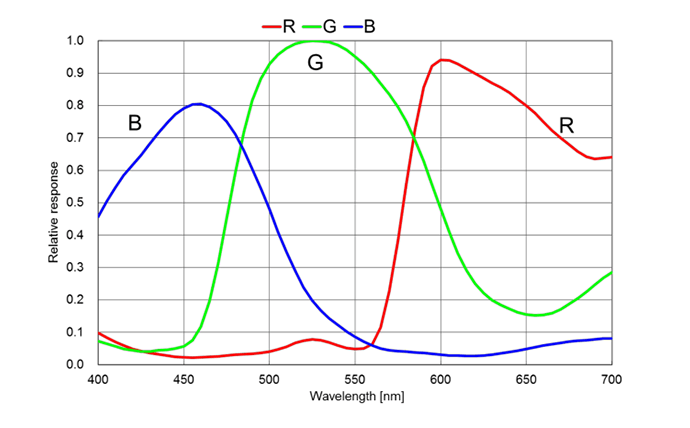

MER2-630-60U3C - Spectral Response

Resolution:	3088×2064
Frame Rate:	60
Sensor Manufacturer:	Sony
Sensor:	1/1.8" IMX178 Rolling shutter CMOS
Pixel Size:	2.4μm
Pixel Bit Depth:	8 bit，10 bit
Data Interface:	USB3.0
Lens Mount:	C，CS
Spectrum:	Color
Pixel Formats:	Bayer RG8，Bayer RG10
Signal Noise Ratio:	40.19 dB
Exposure Time:	Standard: 8μs ~ 1s
Gain:	0dB ~ 24dB
Binning:	1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4
Decimation:	FPGA: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4
Reverse X/Y:	Reverse X/Y
I/O Interface:	1 input and 1 output with opto-isolated, 2 programmable GPIOs
Power Requirement:	Power over USB3.0
Power Consumption:	1.82 W @ 5 VDC
Operating Temp:	0°C ~ +45°C
Storage Temp:	-20°C ~ +70°C
Operating Humidity:	10% ~ 80%
Dimensions (W×H×L):	29 mm × 29 mm × 29 mm (w/o connectors)
Weight:	65 g
Conformity:	CE, RoHS, FCC, ICES, UKCA, UL, USB3.0 Vision, GenICam
