MER2-630-18GC-P

1/1.8", 18.45FPS, 3088×2064, COLOR, ROLLING SHUTTER, IMX178, GigE

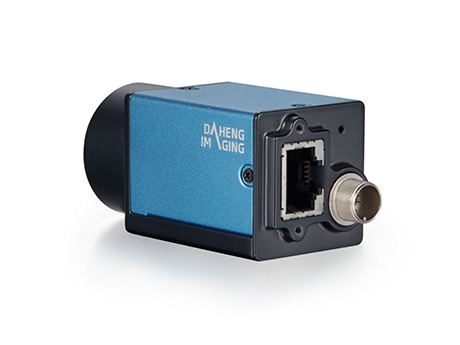

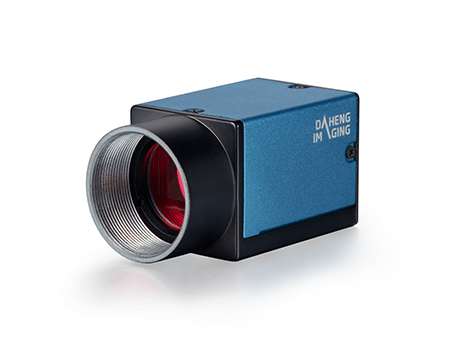

The MER2-630-18GC-P camera is a color GigE Vision camera with the Sony IMX178 CMOS sensor. Thanks to the extremely compact (29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY2 cameras can secure the reliability of cameras deployed in harsh environments.

The MER2-630-18GC-P camera has opto-isolated I/Os. The GPIOs give cameras maximum flexibility to adapt to specific needs.

• Auto Gain, Auto Exposure, ROI
• Global Reset Release Shutter exposure (GRR)
• Binning, Decimation
• Timer, Counter, LUTs and User Set Control
• Gamma, Black Level, Digital Shift, Sharpness
• Support Light Source Preset, Color Transformation Control, Saturation and White Balance
• Remove Parameter Limits
• 16KB User Data Area
