MER2-503-23GC

2/3", 23.5FPS, 2448×2048, COLOR, GLOBAL SHUTTER, IMX264, GigE

The MER2-503-23GC camera is a color GigE Vision camera with the Sony IMX264 CMOS sensor. Thanks to the extremely compact (29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY2 cameras can secure the reliability of cameras deployed in harsh environments.

The MER2-503-23GC camera has opto-isolated I/Os. The GPIOs give cameras maximum flexibility to adapt to specific needs.

Auto Gain, Auto Exposure, ROI
Binning, Decimation
Timer, Counter, LUTs and User Set Control
Gamma, Black Level, Digital Shift, Sharpness
Support Light Source Preset, Color Transformation Control, Saturation and White Balance
Remove Parameter Limits
16KB User Data Area

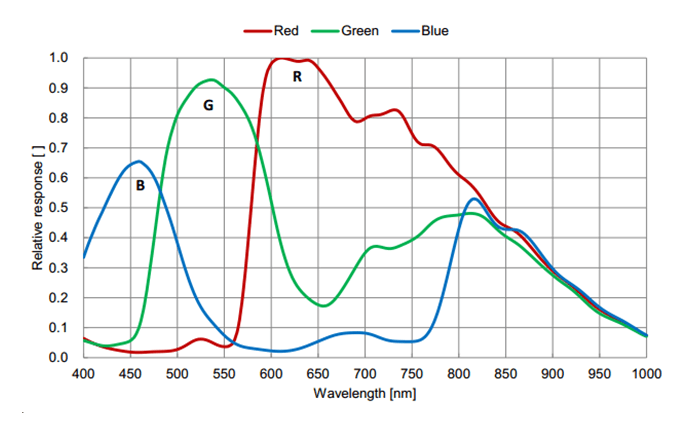

MER2-503-23GC - Spectral Response

Resolution:	2448×2048
Frame Rate:	23.5
Sensor Manufacturer:	Sony
Sensor:	2/3" IMX264 Global shutter CMOS
Pixel Size:	3.45μm
Pixel Bit Depth:	8 bit, 12 bit
Data Interface:	GigE
Lens Mount:	C，CS
Spectrum:	Color
Pixel Formats:	Bayer RG8, Bayer RG12
Signal Noise Ratio:	40.59 dB
Exposure Time:	UltraShort: 1μs~100μs, Standard: 20μs ~ 1s
Gain:	0dB ~ 24dB
Binning:	1×1, 1×2, 2×1, 2×2
Decimation:	FPGA: 1×1, 1×2, 2×1, 2×2
Reverse X/Y:	Reverse X/Y
I/O Interface:	1 input and 1 output with opto-isolated, 2 programmable GPIOs
Power Requirement:	12 ~ 24 VDC
Power Consumption:	2.73 W @ 12 VDC
Operating Temp:	0°C ~ +45°C
Storage Temp:	-20°C ~ +70°C
Operating Humidity:	10% ~ 80%
Dimensions (W×H×L):	29 mm × 29 mm × 29 mm (w/o connectors)
Weight:	62 g
Conformity:	CE, RoHS, FCC, ICES, UKCA, UL, GigE Vision, GenICam
