MER2-240-159U3M

1/1.7", 159.4FPS, 2048×1200, MONO, GLOBAL SHUTTER, GMAX4002, USB3.0

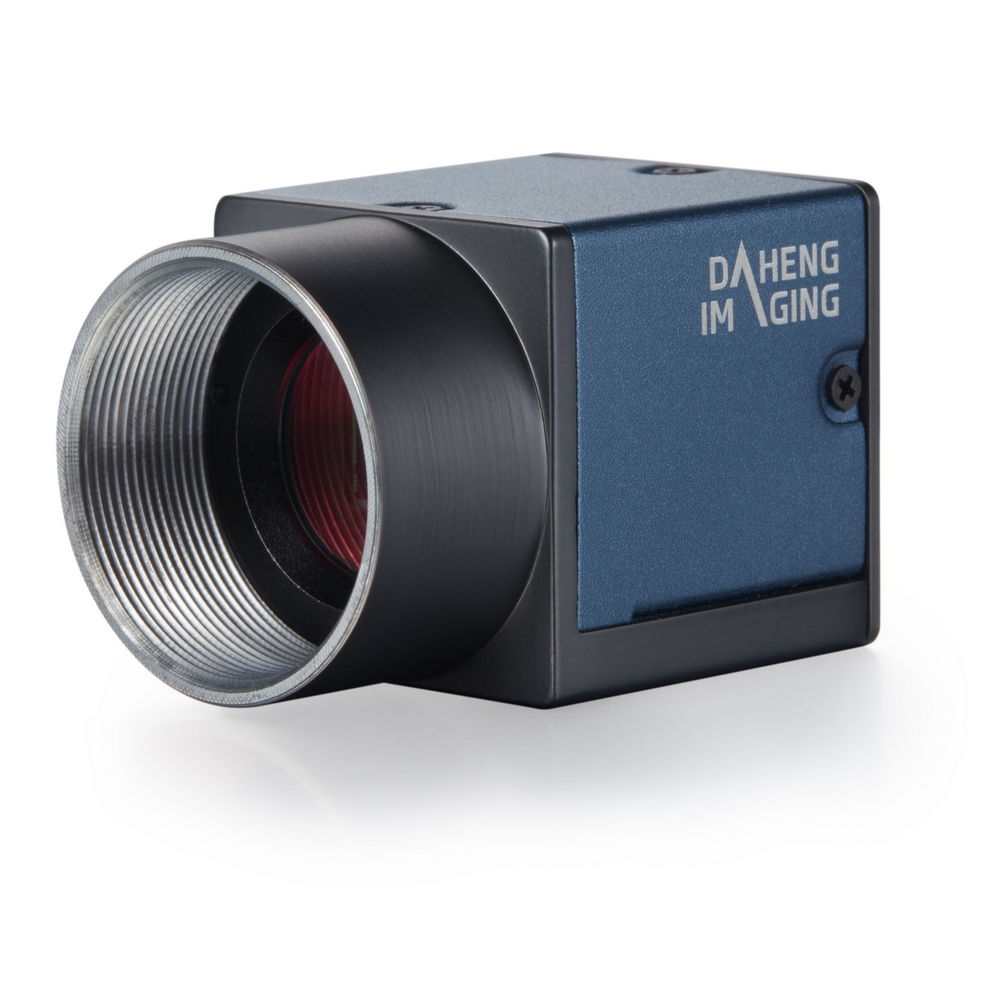

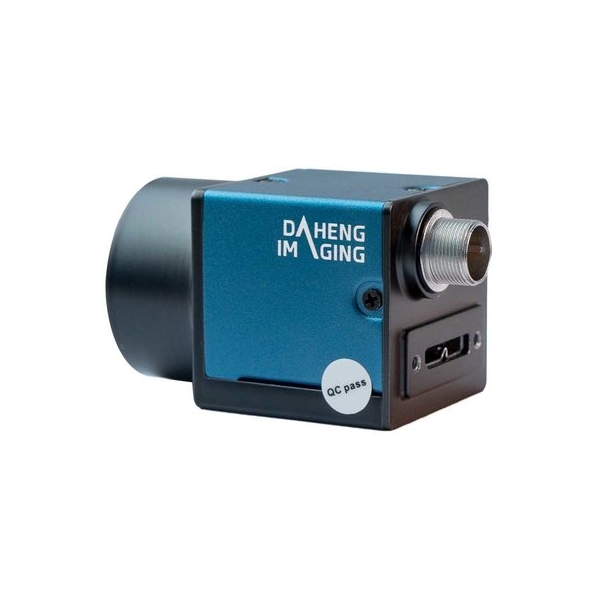

The MER2-240-159U3M camera is a monochrome USB3.0 Vision camera with the Gpixel GMAX4002 CMOS sensor. Thanks to the extremely compact (29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY2 cameras can secure the reliability of cameras deployed in harsh environments.

The MER2-240-159U3M camera is powered over the USB3.0 interface.

Trigger mode: Frame Start /Frame Burst Start
Decimation, Binning, Black Level, Digital Shift and Static Defect Correction
Adjustable Gamma for optimizing the brightness of images
Noise Reduction and Sharpness
Programmable LUTs and User Set Control
Support Timer and Counter
Support Remove Parameter Limit to expand the range of exposure, gain and so on
512KB ROM area for storing large amounts of data and files

MER2-240-159U3M - Spectral Response

Resolution:	2048×1200
Frame Rate:	159.4
Sensor Manufacturer:	Gpixel
Sensor:	1/1.7" GMAX4002 Global shutter CMOS
Pixel Size:	4.0μm
Pixel Bit Depth:	8 bit, 10 bit, 12 bit
Data Interface:	USB3.0
Lens Mount:	C，CS
Spectrum:	Mono
Pixel Formats:	Mono8, Mono10, Mono12
Signal Noise Ratio:	39.98 dB
Exposure Time:	Standard: 7μs ~ 1s
Gain:	0dB ~ 16dB
Binning:	1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4
Decimation:	Horizontal FPGA, Vertical Sensor: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4
Reverse X/Y:	Reverse X/Y
I/O Interface:	1 input and 1 output with opto-isolated, 2 programmable GPIOs
Power Requirement:	Power over USB3.0
Power Consumption:	2.22 W @ 5 VDC
Operating Temp:	0°C ~ +45°C
Storage Temp:	-20°C ~ +70°C
Operating Humidity:	10% ~ 80%

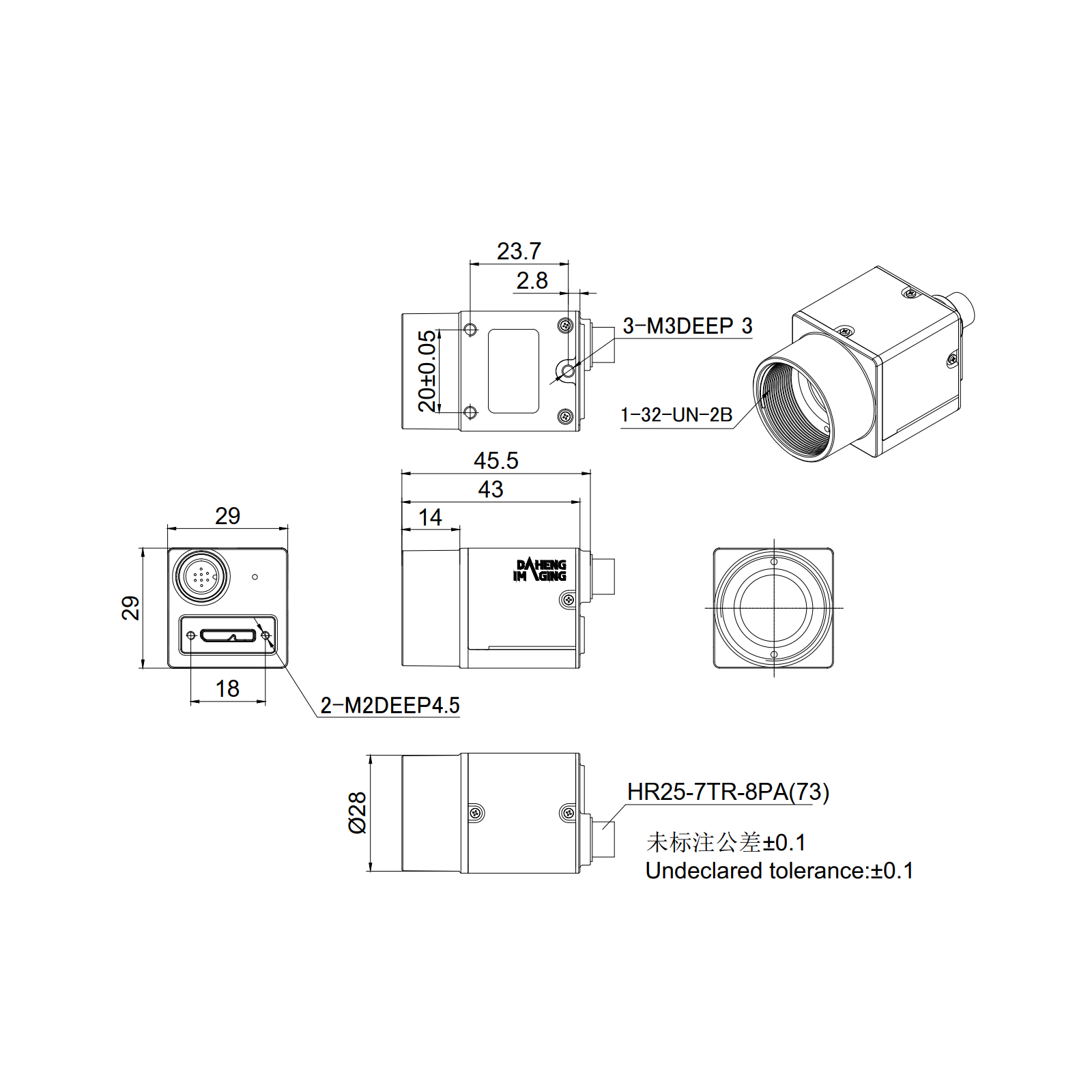

Dimensions (W×H×L):	29 mm × 29 mm × 29 mm (w/o connectors)
Weight:	65 g
Conformity:	CE, RoHS, FCC, ICES, UKCA, UL, USB3.0 Vision, GenICam
