MER2-1220-9GM-P

1/1.7", 9.63FPS, 4024×3036, MONO, ROLLING SHUTTER, IMX226, GigE

The MER2-1220-9GM-P camera is a monochrome GigE Vision camera with the Sony IMX226 CMOS sensor. Thanks to the extremely compact (29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY2 cameras can secure the reliability of cameras deployed in harsh environments.

The MER2-1220-9GM-P camera has opto-isolated I/Os. The GPIOs give cameras maximum flexibility to adapt to specific needs.

Auto Gain, Auto Exposure, ROI
Global Reset Release Shutter exposure (GRR)
Binning, Decimation
Timer, Counter, LUTs and User Set Control
Gamma, Black Level, Digital Shift, Sharpness
Support Noise Reduction
Remove Parameter Limits
16KB User Data Area

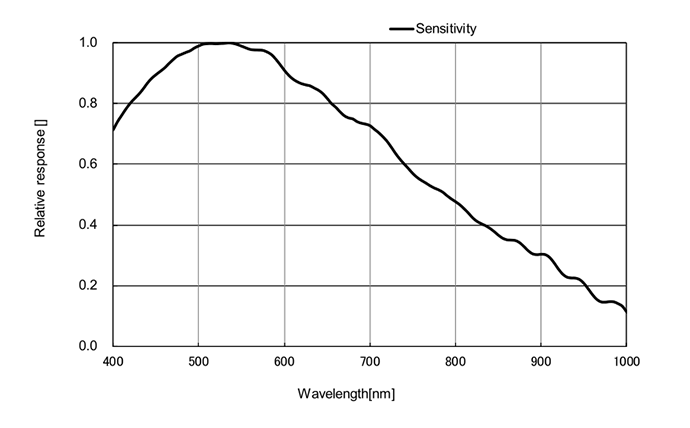

MER2-1220-9GM-P - Spectral Response

Resolution:	4024×3036
Frame Rate:	9.63
Sensor Manufacturer:	Sony
Sensor:	1/1.7" IMX226 Rolling shutter CMOS
Pixel Size:	1.85μm
Pixel Bit Depth:	8 bit，12 bit
Data Interface:	GigE
Lens Mount:	C，CS
Spectrum:	Mono
Pixel Formats:	Mono8，Mono12
Signal Noise Ratio:	40.2 dB
Exposure Time:	Standard: 23μs~1μs, GRR: 23μs~1s
Gain:	0dB ~ 24dB
Binning:	FPGA: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4, Sensor: 1×1, 1×2
Decimation:	FPGA: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4
Reverse X/Y:	Reverse X/Y
I/O Interface:	1 input and 1 output with opto-isolated, 2 programmable GPIOs
Power Requirement:	12 ~ 24 VDC or PoE
Power Consumption:	2.57 W @ 12 VDC；2.81 W @ PoE
Operating Temp:	0°C ~ +45°C
Storage Temp:	-20°C ~ +70°C
Operating Humidity:	10% ~ 80%
Dimensions (W×H×L):	29 mm × 29 mm × 40.3 mm (w/o connectors)
Weight:	75 g
Conformity:	CE, RoHS, FCC, ICES, UKCA, UL, GigE Vision, GenICam
