ME2S-560-70U3M

1/2", 70.3FPS, 2600×2160, MONO, GLOBAL SHUTTER, GMAX2505, USB3.0

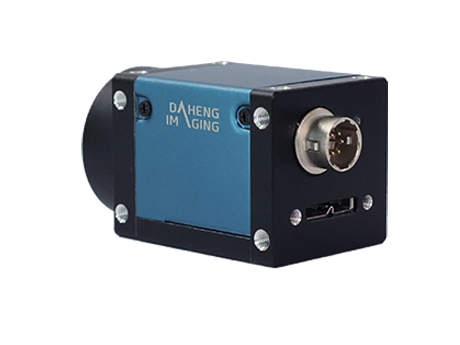

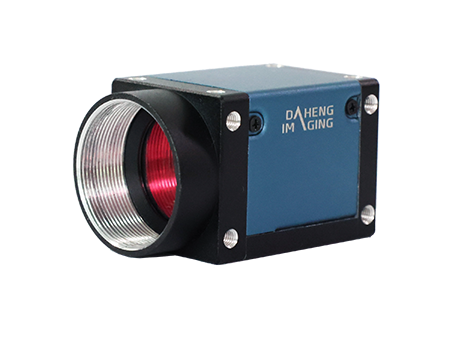

The ME2S-560-70U3M camera is monochrome USB3.0 Vision camera with the Gpixel GMAX2505 CMOS sensor. The ME2S-560-70U3M camera has opto-isolated I/Os that adapt to specific needs.

Fourside mounting holes provide maximum installation flexibility for ME2S-U3. Thanks to the extremely compact (29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY2 Super cameras can secure the reliability of cameras deployed in harsh environments.

• Trigger mode: Frame Start /Frame Burst Start
• Support Timed exposure mode and TriggerWidth exposure mode
• Acquisition Burst Mode
• Support Gamma, Binning, Decimation, Digital Shift, Black Level, Auto Black Level, Flat Field Correction and Static Defect Pixel Correction
• Support Sharpness and Noise Reduction
• Programmable LUTs and storable user sets
• Support Timer and Counter
• Support Remove Parameter Limit to expand the range of exposure, gain, white balance, and so on
• 16KB data storage area for saving algorithm coefficients and parameter configuration
