ME2P-900-43U3C

2/3", 43.5FPS, 4200×2160, COLOR, GLOBAL SHUTTER, GMAX2509, USB3.0

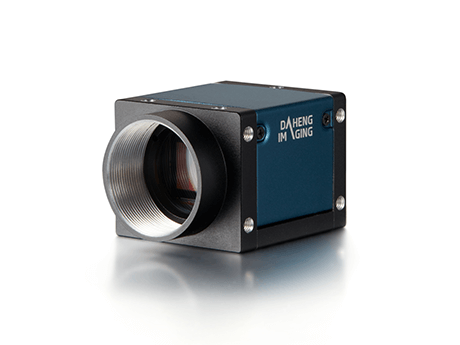

The ME2P-900-43U3C camera is a color USB3.0 Vision camera with the Gpixel GMAX2509 CMOS sensor. The ME2P-900-43U3C camera has opto-isolated I/Os that adapt to specific needs.

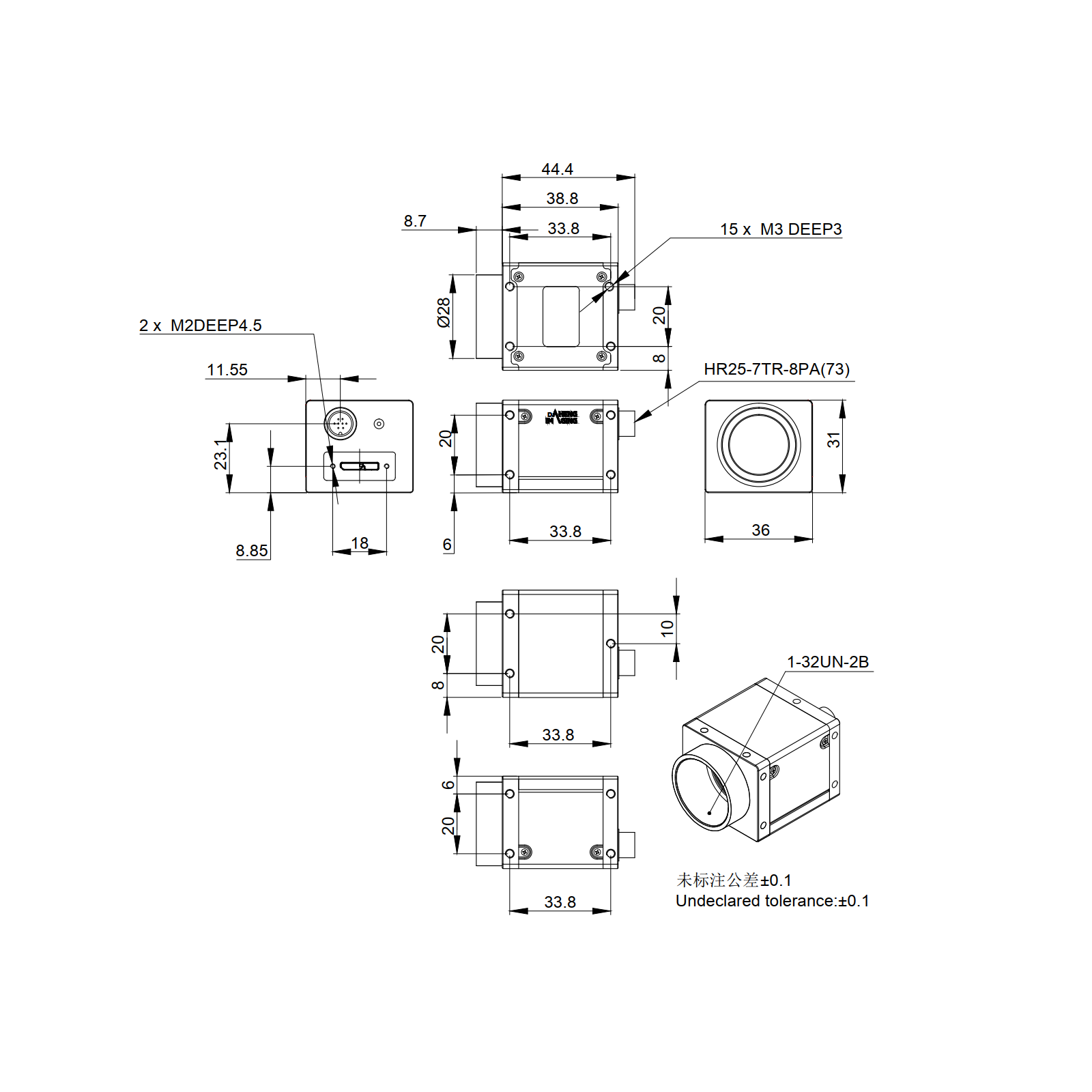

Fourside mounting holes provide maximum installation flexibility for ME2P-U3. Thanks to the extremely compact (36mm × 31mm × 38.8mm), robust metal housings and locking screw connectors, the MERCURY2 Plus cameras can secure the reliability of cameras deployed in harsh environments.

• Trigger mode: Frame Start /Frame Burst Start
• Support Gamma, Binning, Decimation, Digital Shift
• Support Black Level, Flat Field Correction and Static Defect Pixel Correction
• Color models support Light source preset, Color Transformation Control and Saturation
• Monochrome models support Noise Reduction and Sharpness
• Programmable LUTs and User Set Control
• Support Timer and Counter
• Support Remove Parameter Limit to expand the range of exposure, gain, and so on
• 16KB data storage area for saving algorithm coefficients and parameter configuration
